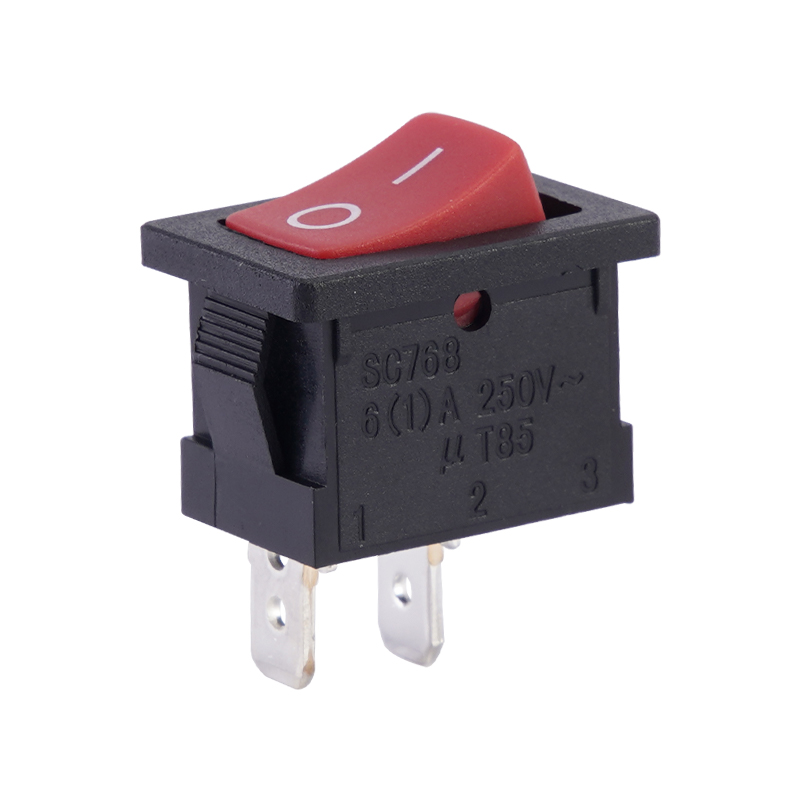

768-1VBH-20G9-P4A rocker switches
This is the selling point of the product
Compact size and structure
768-1VBH-20G9-P4A rocker switches
-
What's APP
13530287877 -
Skype
49047173@qq.com -
Wechat
13902627887
Details
characteristic
parameter
| Place of Origin | Dongguan, Guangdong, China |
| Brand name | BAOKEZHEN |
| Electrical parameters | 15A 125VAC 6E3 T85 6(1)A 250VAC T85 1E4 10(4)A 250VAC T105/55 1E4 6(4)A 250VAC T105/55 5E4 |
| Electrical life | 1E4 |
| Mechanical life | 2E4 |
| contact resistance | ＜100mΩ |
| Insulation impedance | ＞100MΩ |
| Withstand voltage | 1500VAC |
| Leakage tracking index | PTI 175 |
Safety sign |  |
This switch is applicable to Class II appliances |
| Contact spacing | ＜3mm | |
Degree of protection | IP20 | |
Ambient air temperature | 0℃～+105℃ | |
Fire rating | UL94V-0 | |
Glowing wire temperature | 850℃ | |
Base and button materials | Nylon PA66 | |
Contact material | Silver or silver tin oxide | |
| Terminal material | copper alloy | |
| Terminal temperature rise | Max.30K(UL1054) Max.55K(EN61058-1、GB/T 15092.1) | |
Terminal plugging force | ≥80N | |
