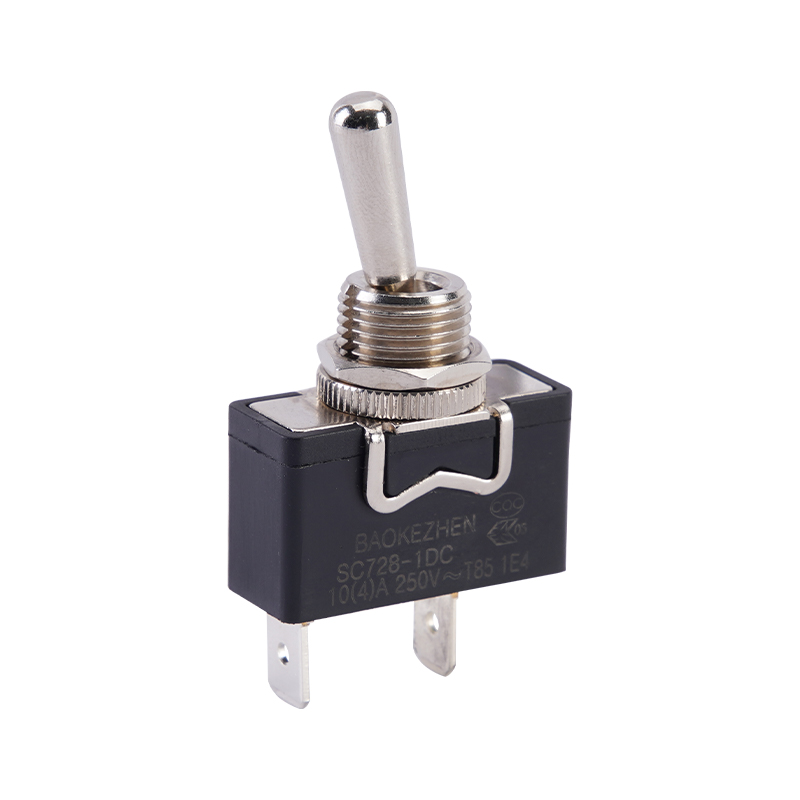

728-1DC Button switches
This is the selling point of the product
Compact size and structure
728-1DC Button switches
-
What's APP
13530287877 -
Skype
49047173@qq.com -
Wechat
13902627887
Details
characteristic
parameter
| Place of Origin | Dongguan, Guangdong, China |
| Brand name | BAOKEZHEN |
| Electrical parameters | 10A 125V/250VAC 10(2)A 250VAC T85/55 1E4 |
| Electrical life | 1E4 |
| Mechanical life | 2E4 |
| contact resistance | ＜100mΩ |
| Insulation impedance | ＞100MΩ |
| Withstand voltage | 1500VAC |
| Leakage tracking index | PTI 175 |
Safety sign |  |
This switch is applicable to Class II appliances |
Contact spacing | ＞3mm | |
Degree of protection | IP20 | |
Ambient air temperature | 0℃～+85℃ | |
Fire rating | UL94V-0 | |
Glowing wire temperature | 850℃ | |
Base and material | Nylon PA66 | |
Contact material | Silver or silver tin oxide | |
| Terminal material | copper alloy | |
| Terminal temperature rise | Max.30K(UL1054) Max.55K(EN61058-1) | |
Terminal plugging force | ≥96N | |
